8MP/4K 10X ZOOM Starlight NDAA Network UAV Camera Module
|
Model |
SG -UCM8010NKL |
||||
|
Sensor |
Sensor gambar |
1/2.8 "Sony Starvis Progressive Scan CMOS |
|||
|
Piksel yang efektif |
Kira -kira. 8.46 megapiksel |
||||
|
Lensa |
Panjang fokus |
4.8mm ~ 48mm, zoom optik 10x |
|||
|
Bukaan |
F1.7 ~ F3.2 |
||||
|
Bidang pandang |
H: 60.2 ° ~ 6.6 °, V: 36.1 ° ~ 3.7 °, D: 67.3 ° ~ 7.6 ° |
||||
|
Tutup jarak fokus |
1m ~ 2m (lebar ~ tele) |
||||
|
Kecepatan zoom |
Kira -kira. 3s (Optical Wide ~ Tele) |
||||
|
Jarak Dori (Manusia) |
Deteksi |
Mengamati |
Mengenali |
Mengenali |
|
|
1.326m |
526m |
265m |
133m |
||
|
Video |
Kompresi |
H.265/H.264/H.264H/MJPEG |
|||
|
Kemampuan streaming |
3 aliran |
||||
|
Resolusi |
Aliran utama: 25/30fps@3840 × 2160; 25/30fps@1920 × 1080 Sub - Stream1: 25/30fps@704 × 576; 25/30fps@640 × 480 Sub - Stream2: 25/30fps@1280 × 720; 25/30fps@704 × 576 |
||||
|
Video Bit Rate |
32kbps ~ 16Mbps |
||||
|
Audio |
AAC / MP2L2 |
||||
|
Jaringan |
Protokol jaringan |
IPv4, IPv6, http, https, tcp, udp, rtsp, rtcp, rtp, arp, ntp, ftp, dhcp, pppoe, dns, ddns, upnp, igmp, icmp, snmp, smtp, qoS, 802.12.1.1x |
|||
|
API |
Onvif, http API, SDK |
||||
|
Browser web |
Yaitu, tepi, firefox, chrome |
||||
|
Pengguna |
Hingga 20 pengguna, 2 level: administrator, pengguna |
||||
|
Penyimpanan |
Kartu TF, hingga 1TB |
||||
|
Multicast |
Mendukung |
||||
|
Meningkatkan |
Mendukung |
||||
|
Acara Umum |
Gerakan, Tamper, Kartu SD, Jaringan |
||||
|
Fungsi |
Pelacakan Cerdas, Snapshot, Rekaman Video, Log Penerbangan, Overlay Informasi GPS, dll. |
||||
|
Rasio S/N. |
≥55dB (AGC OFF, berat badan) |
||||
|
Iluminasi minimum |
Warna: 0,01lux/f1.7; B/W: 0.001LUX/F1.7 |
||||
|
Pengurangan kebisingan |
2d/3d |
||||
|
Mode Eksposur |
Auto, Prioritas Apertur, Prioritas Rana, Gain Prioritas, Manual |
||||
|
Kompensasi Eksposur |
Mendukung |
||||
|
Kecepatan rana |
1/3 ~ 1/30000 |
||||
|
BLC |
Mendukung |
||||
|
HLC |
Mendukung |
||||
|
Wdr |
Mendukung |
||||
|
Keseimbangan putih |
Mobil, manual, indoor, outdoor, atw, lampu natrium, lampu jalan, alami, satu dorongan |
||||
|
Siang/malam |
Listrik, ICR (Otomatis/Manual) |
||||
|
Mode fokus |
Auto, Manual, Semi Auto, Fast Auto, Fast Semi Auto, One Push AF |
||||
|
Defog elektronik |
Mendukung |
||||
|
Membalik |
Mendukung |
||||
|
EIS |
Mendukung |
||||
|
Zoom digital |
16x |
||||
|
Kontrol eksternal |
Ttl |
||||
|
Antarmuka |
Port Ethernet 4Pin, port daya 6pin & port UART, port audio 3Pin |
||||
|
Protokol komunikasi |
Sony Visca, Pelco D/p |
||||
|
Kondisi operasi |
- 30 ° C ~+60 ° C/20%hingga 80%RH |
||||
|
Kondisi penyimpanan |
- 40 ° C ~+70 ° C/20% hingga 95% RH |
||||
|
Catu daya |
DC 12V |
||||
|
Konsumsi daya |
Kekuatan Statis: 4.5W, Kekuatan Olahraga: 5.5W |
||||
|

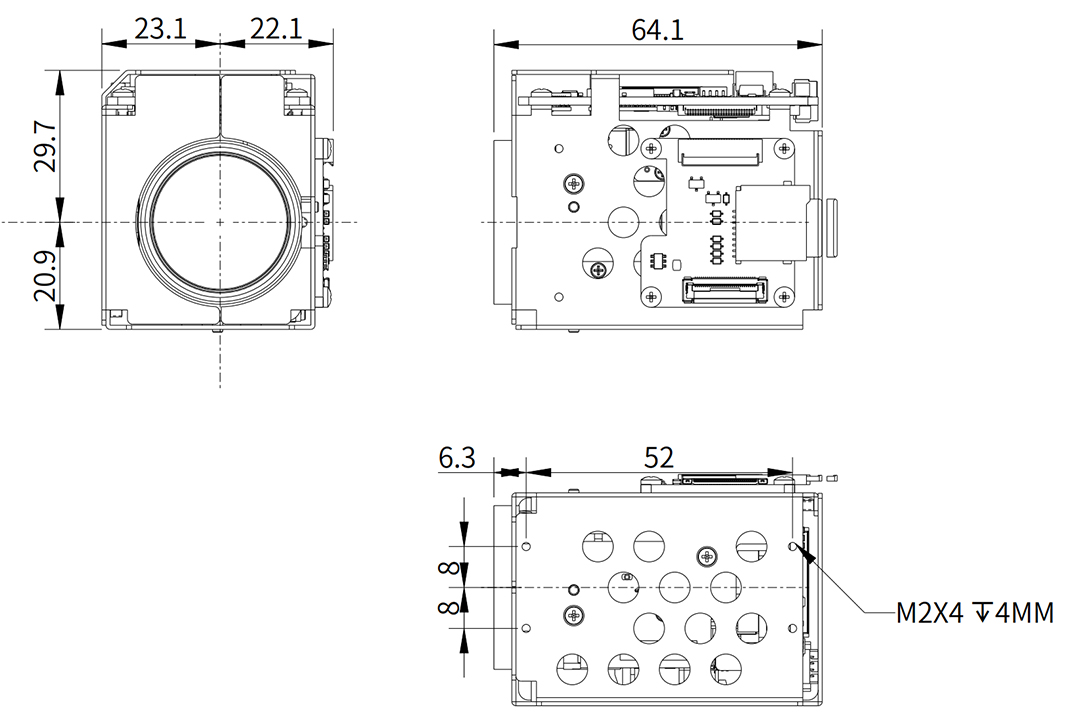

Dimensi (l*w*h) |
64.1mm*45.2mm*50.6mm |
||||
|
Berat |
146g |
||||
