640x512 Modul Kamera Jaringan Termal dengan Lensa Motor 150mm
Model | SG - TCM06N1- M150 | SG - TCM06N1- M100 | SG - TCM06N1- M75 | |
Sensor | Sensor gambar | Mikrobolometer Vox yang tidak didinginkan | ||
| Resolusi | 640 x 512 | |||
| Ukuran piksel | 17μm | |||
| Rentang spektral | 8 ~ 14μm | |||
| Netd | ≤50mk@25℃, F#1.0 | |||

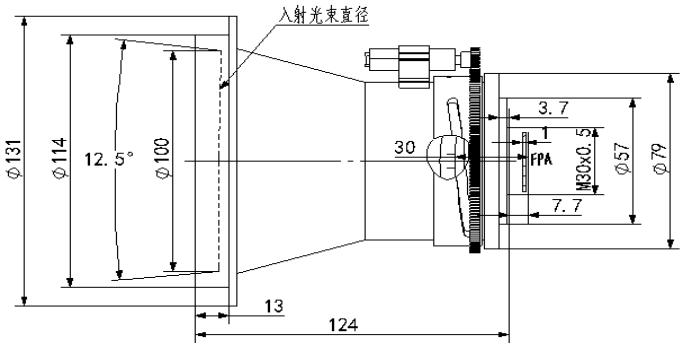

Lensa | Panjang fokus | Lensa motor 150mm | Lensa motor 100mm | Lensa motor 75mm |
| Zoom optik | N/a | N/a | N/a | |
| Zoom digital | N/a | N/a | N/a | |
| Nilai f | F1.0 | F1.0 | F1.0 | |
| Fov | 4.2 ° x3.3 ° | 6.2 ° x5.0 ° | 8.3 ° x6.6 ° | |
Video | Kompresi | H.265/H.264/H.264H | ||
| Foto | Jpeg | |||
| Warna semu | Dukungan: putih panas, panas hitam, merah besi, pelangi 1, fulgurite, pelangi 2, fusi, merah kebiruan, amber, arktik, tint | |||
| Stream | Aliran utama: 25fps@(704 × 576), 25fps@(352 × 288) Sub aliran: 25fps@(704 × 576), 25fps@(352 × 288) | |||
Jaringan | Protokol jaringan | IPv4/ipv6, http, https, qos, ftp, smtp, uPnp, dns, ddns, ntp, rtp, rtp, tcp, udp, dhcp, pppoe, 802.1x, filter IP | ||
| Interoperabilitas | Profil ONVIF S, Buka API, SDK | |||
| Max. Koneksi | 20 | |||
Intelijen | Peristiwa normal | Deteksi Gerakan, Deteksi Audio, Konflik Alamat IP, Akses Ilegal, Anomali Penyimpanan | ||
| Fungsi IVS | Mendukung Fungsi Cerdas:Tripwire,Deteksi silang, intrusi, Deteksi berkeliaran. | |||
| Deteksi Kebakaran | Mendukung | |||
| Antarmuka | Ethernet | Port Ethernet 4Pin, 10m/100m Self - Adaptasi | ||
| Alarm masuk/keluar | 1/1 | |||
| RS485 | Mendukung | |||
| Resolusi | 50Hz: 25fps@(704 × 576) | |||
| Kemampuan penyimpanan | Kartu micro SD, hingga 256g | |||
| Catu daya | DC 9 ~ 12V (Rekomendasikan: 12V) | |||
| Kondisi operasi | - 20 ° C ~+60 ° C/20%hingga 80%RH | |||
| Kondisi penyimpanan | - 40 ° C ~+65 ° C/20% hingga 95% RH | |||
| Dimensi (l*w*h) | Kira -kira. 250mm*176mm*176mm | Kira -kira. 194mm*131mm*131mm | Kira -kira. 182mm*101mm*101mm | |
| Berat | Kira -kira. 1.4kg | Kira -kira. 1.1kg | Kira -kira. 720g | |
